STC Enhanced 8051 MCUs Explained: A Guide to the STC89 / STC12 / STC15 / STC8 Series and Their Hottest Parts

In the Chinese microcontroller market, STC holds a unique position. It does not compete on ecosystem or toolchains; it wins on extreme cost-performance, in-circuit programming over a simple serial cable, strong noise immunity and code that cannot be read back. These four traits have kept it in service for decades across industrial control, consumer electronics, teaching labs and automation retrofits. Based on the 50 parts being quoted most this week, this article explains STC's series evolution, part-number decoding and selection logic in one pass.

1. Who Is STC?

STC is the enhanced 8051 microcontroller brand of 宏晶科技 (STCmicro Technology Co., Ltd.), which positions itself as the standard-setter for next-generation enhanced 8051 MCUs, with a nationwide sales network and a reputation for extremely low prices plus complete support.

The technical core of STC MCUs can be summarized in a few points: instruction-set compatibility with the classic 8051, but a 1T (single clock/machine-cycle) architecture that runs 8 to 12 times faster than traditional 8051; a built-in high-precision R/C clock, so most parts need no external crystal; ISP/IAP in-system programming that downloads code over a UART without a programmer; large on-chip Flash, SRAM and Data Flash (usable as EEPROM); ninth-generation encryption claimed to be undecryptable — a practical defense against board cloning; wide supply voltage, low power, strong anti-interference, and industrial temperature grades.

2. Series Evolution: What the Four Generations Differ In

STC's lineup advances generation by generation, each keeping the 8051 instruction set while upgrading speed and resources:

• STC89 series — 12T/6T architecture, closest to the classic 8051. The classic choice for teaching, entry-level design and simple mass production. Representative parts: STC89C52RC (8 KB Flash, 512 B RAM) and STC89C58RD+ (32 KB Flash).
• STC10/STC12 series — the first-generation 1T enhanced parts. The benchmark is STC12C5A60S2: 60 KB Flash, 8-channel 10-bit ADC, dual UART, about 6 to 7 times faster than a standard 8051. The STC10 series is a trimmed-down, low-cost version for small systems.
• STC15 series — 1T plus wide supply (2.6 V to 5.5 V), the cost-performance workhorse. Extremely many small-package parts (SOP8/SOP16/TSSOP20), with Flash from 1 KB to 60 KB, SRAM up to 4 KB and up to 4 UARTs.
• STC8 series — the new-generation ultra-high-speed 8051 core (1T), over 12 times faster than a traditional 8051, 16 to 20 interrupt sources with 4-level priority, and operation down to 1.9 V (internal LDO). This is the primary choice for new designs.

3. Part-Number Cheat Sheet

• Voltage letters: C = 5 V system (3.3 V to 5.5 V); LE = low-voltage version (2.2 V to 3.6 V); W = wide voltage (2.6 V to 5.5 V, STC15 series).
• Capacity digits: e.g., 5A60S2 = 60 KB Flash; F2K60S2 = 2 KB SRAM + 60 KB Flash; W4K32S4 = 4 KB SRAM + 32 KB Flash; 8A8K64S4 = 8 KB SRAM + 64 KB Flash; 1K08 = 1 KB SRAM + 8 KB Flash (STC8 series, Flash graded 8K/16K/17K/28K).
• Function letters: A = with ADC; S2/S4 = 2/4 UARTs; A12 = 12-bit ADC; D4 and similar denote configuration variants.
• Speed and temperature suffix: -28I/-30I/-35I/-36I/-38I/-40I/-45I = maximum clock (28/30/35/36/38/40/45 MHz) + I = industrial grade (−40°C to +85°C).
• Package suffix: LQFP44/48/64, PDIP40, SOP8/16/20/28, TSSOP20/28, PLCC44, etc.

4. This Week's 50 Hot Models, by Series

4.1 STC89 series — classic 8051 (4 parts)

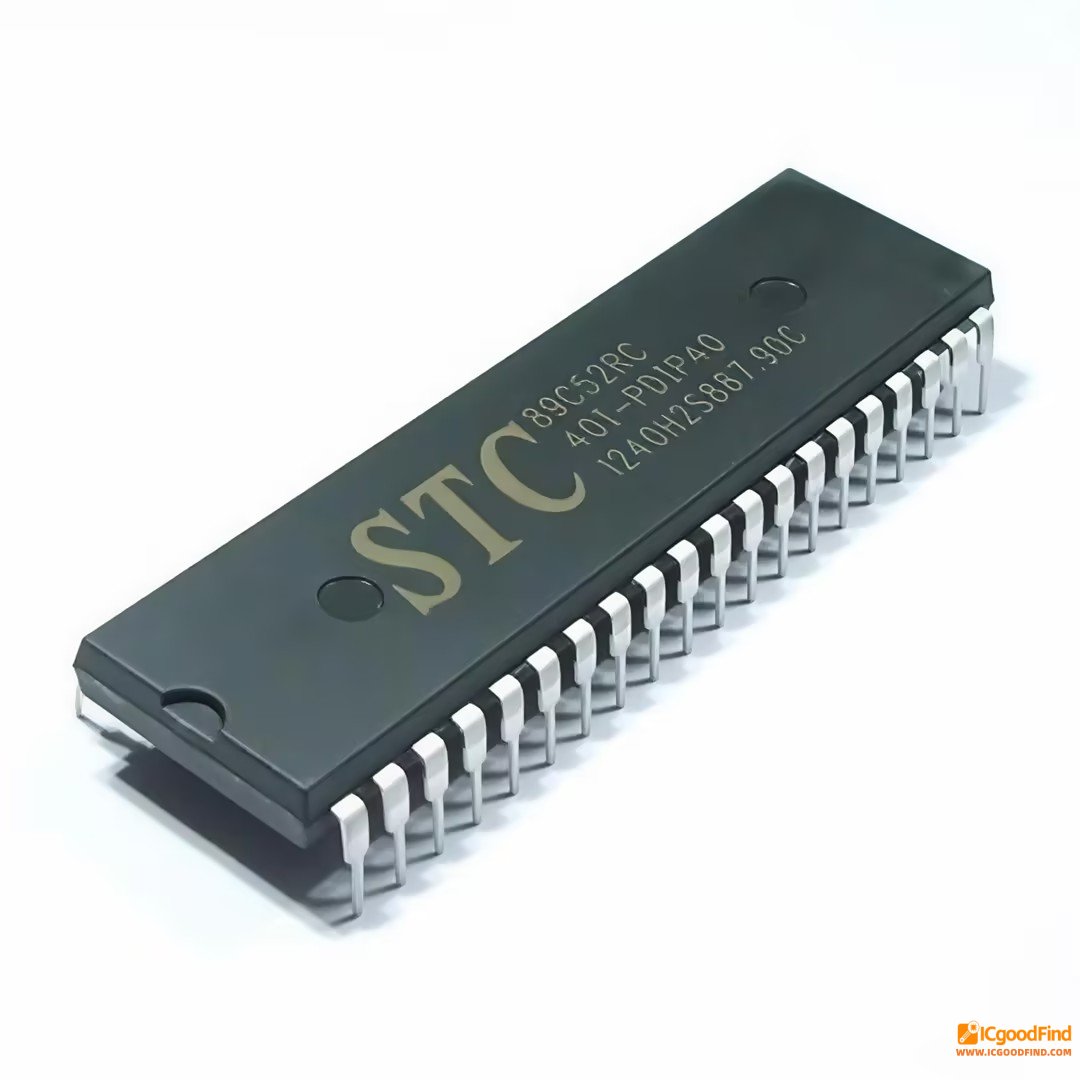

STC89C52RC-40I-PDIP40, STC89C52RC-40I-LQFP44, STC89C58RD+40I-LQFP44, STC89C58RD+40I-PDIP40.

Two Flash tiers (8 KB for the 52RC, 32 KB for the 58RD+), 40 MHz, industrial grade. PDIP40 through-hole suits breadboards and relay control; LQFP44 surface-mount suits production boards.

4.2 STC10/STC12 series — first-generation 1T (11 parts)

STC12C5A60S2-35I-LQFP44, STC12C5A60S2-35I-PDIP40, STC12C5A60S2-35I-LQFP48, STC12C5A60S2-35I-LQFP44-LQFP48-PDIP-PLCC, STC12C5A60S2, STC12C5A32S2-35I-LQFP44, STC12C5A16S2-35I-LQFP44, STC12LE5A60S2-35I-LQFP44, STC12C5608AD-35I-LQFP32, STC12C5616AD-35I-LQFP32, STC10F08XE-35I-LQFP44.

STC12C5A60S2 is the all-purpose part — 60 KB Flash, dual UART, 10-bit ADC — available across LQFP44/48, PDIP40 and PLCC44, so second-source buyers simply pick the package that matches the board. The 5608AD/5616AD are the LQFP32 small-package versions with ADC; the LE suffix marks the 2.2 V to 3.6 V low-voltage version.

4.3 STC15 series — wide-voltage cost-performance workhorse (20 parts)

STC15W408AS-35I-SOP16, STC15W408AS-35I-SOP20, STC15W408AS-35I-SOP28, STC15W408AS-35I-TSSOP20, STC15W408AS-35I-TSSOP28, STC15W408AS, STC15W204S-35I-SOP16, STC15W204S-35I-SOP8, STC15W201S-35I-SOP8, STC15W201S-35I-SOP16, STC15W202S-35I-SOP16, STC15W104-35I-SOP8, STC15W404AS-35I-SOP16, STC15F104W-35I-SOP8, STC15F104E-35I-SOP8, STC15W4K32S4-30I-LQFP44, STC15W4K56S4-30I-LQFP44, STC15F2K60S2-28I-LQFP44, STC15F2K60S2-28I-LQFP32, STC15F2K60S2.

This is the hottest-quoted bucket: the small packages (SOP8/SOP16) with 104/201S/204S/408AS fit sensor acquisition, small appliances and power-tool control boards; the large-capacity 4K32S4/4K56S4/F2K60S2 parts with 4 or 2 UARTs suit multi-UART communication, instrumentation and inverter applications.

4.4 STC8 series — new-generation ultra-high-speed 8051 (16 parts)

STC8G1K08A-36I-SOP8, STC8G1K08-36I-SOP8, STC8G1K08-38I-TSSOP20, STC8G1K08-38I-SOP16, STC8G1K17-38I-TSSOP20, STC8H1K08-36I-TSSOP20, STC8H1K16-36I-LQFP32, STC8H1K17-36I-TSSOP20, STC8H1K28-36I-LQFP32, STC8A8K64S4A12-28I-LQFP44, STC8A8K64S4A12-28I-LQFP48, STC8A8K64S4A12-28I-LQFP64, STC8A8K64D4-45I-LQFP48, STC8A8K64D4-45I-LQFP64, STC8G2K64S4-36I-LQFP48.

The G series targets 1.9 V to 5.5 V wide voltage and low power; the small packages fit battery-powered products. The H series is the high-speed version with a higher clock at the same resource level. The flagship is STC8A8K64S4A12 — 8 KB SRAM, 64 KB Flash, 4 UARTs, 12-bit ADC — available in LQFP44/48/64, suitable for industrial mainboards, multi-machine communication and larger projects with analog acquisition.

5. Selection Advice

• Learning, experiments and low-cost small-batch production: STC89C52RC (PDIP40) is still the first pick — most documentation, fastest learning curve.
• Sensor acquisition, small appliances and low-cost control: STC15W small packages (SOP8/SOP16) with 1 KB to 4 KB Flash are enough, and a serial cable handles mass programming.
• Multi-UART communication, instrumentation and inverters: STC15W4K32S4 or STC15F2K60S2 — large SRAM and multiple UARTs suit Modbus multi-drop networks.
• New designs with analog acquisition: STC8A8K64S4A12 (64 KB Flash, 12-bit ADC, 4 UARTs) — the top configuration in today's 8-bit space.
• Always match the "package × speed suffix" combination: the LQFP44 and LQFP48 versions of the same chip are not interchangeable, so verify the suffix when second-sourcing.

6. Summary

With four generations (89/12/15/8), STC has taken "low-cost enhanced 8051" to the extreme: instruction compatibility, serial download, read-out protection, wide voltage and strong noise immunity, at a very low unit price. The 50 hot models listed above — STC89C52RC, STC12C5A60S2, the STC15W family and the STC8G/8H/8A families — cover everything from entry-level learning to 64 KB high-resource industrial applications. All are available with genuine stock and stable supply channels at ICGOODFIND (#ICGOODFIND), supporting sample orders, full-reel pricing and same-model multi-package alternative checks — send the part number to confirm inventory quickly.
